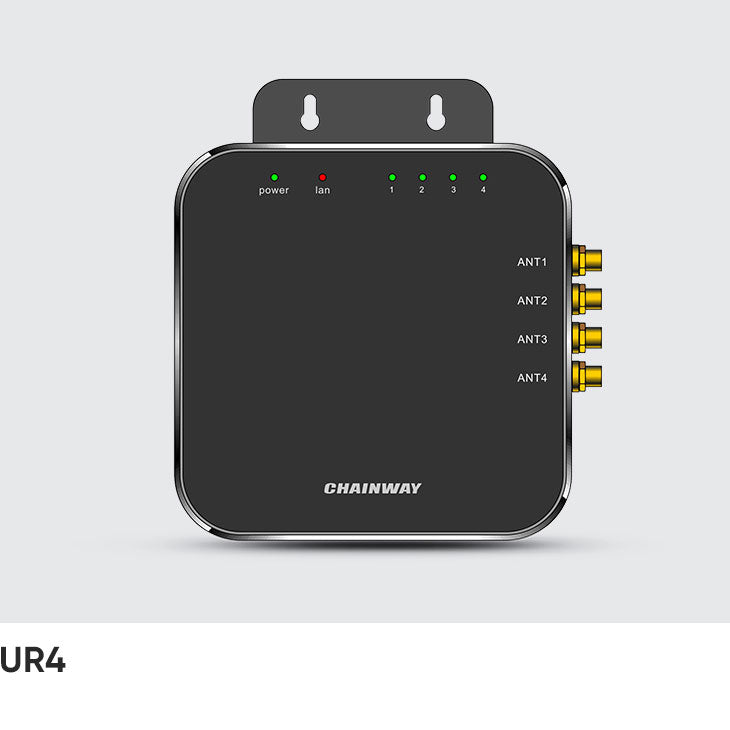

Chainway UR4-E, 33dBm UHF ETSI 4-port CM710-4 module in enclosure, incl pwr supp

Chainway UR4 is a self-developed four-port fixed UHF RFID reader, configured with Impinj E Series chips and supports the Impinj Gen2X. It supports RS232 and RJ45, and can be compatible with various types of antennas. It is resistant to electromagnetic interference and good at heat dispersion. With high integration level and stable capacity, the RFID reader can be deployed in complex environments, such as warehousing, archives and library management, banking, shoes and apparel, jewelry, watch, laundry, production line, medical equipment cabinets, vending machine.

Engine	Based on Impinj E Series chips
Frequency	865-868 MHz
Impinj Gen2X	Supported
Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Antenna	Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power	1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.)
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
Receive Sensitivity	< -84 dBm
RSSI	Supported
Ambient Temp Monitor	Supported
Fastest Read Rate	1300+ tags/sec
Antenna Detector	Supported
Antenna Port	4 channel 50Ω SMA port
